Center height: 355～630
Rated voltage: 6000V, 10000V
Rated frequency: 50Hz
Rated power: see type clef 8-11
Number of poles: 2 to 20 poles
Explosion-proof mark: Exe IIC T3 Gc
Thermal rating: 155(F)
Temperature rise limit: 80K (Class B)
Cooling method: IC611, IC81W, if you need other cooling methods, please specify when ordering
Installation method: IMB3, if you need other installation methods when ordering, please specify
Protection class: IP55
Working system: S1
Ambient air temperature: -20℃～+40℃
Altitude: ≤1000mm
Indoor (standard configuration). Optional: outdoor (W), outdoor medium anti-corrosion (WF1), outdoor strong anti-corrosion (WF2), indoor anti-medium anti-corrosion (F1), indoor strong anti-corrosion (F2), humid tropics (TH), dry Tropical (TA), Outdoor Humid Tropical 4
(THW), outdoor dry tropics (TAW).

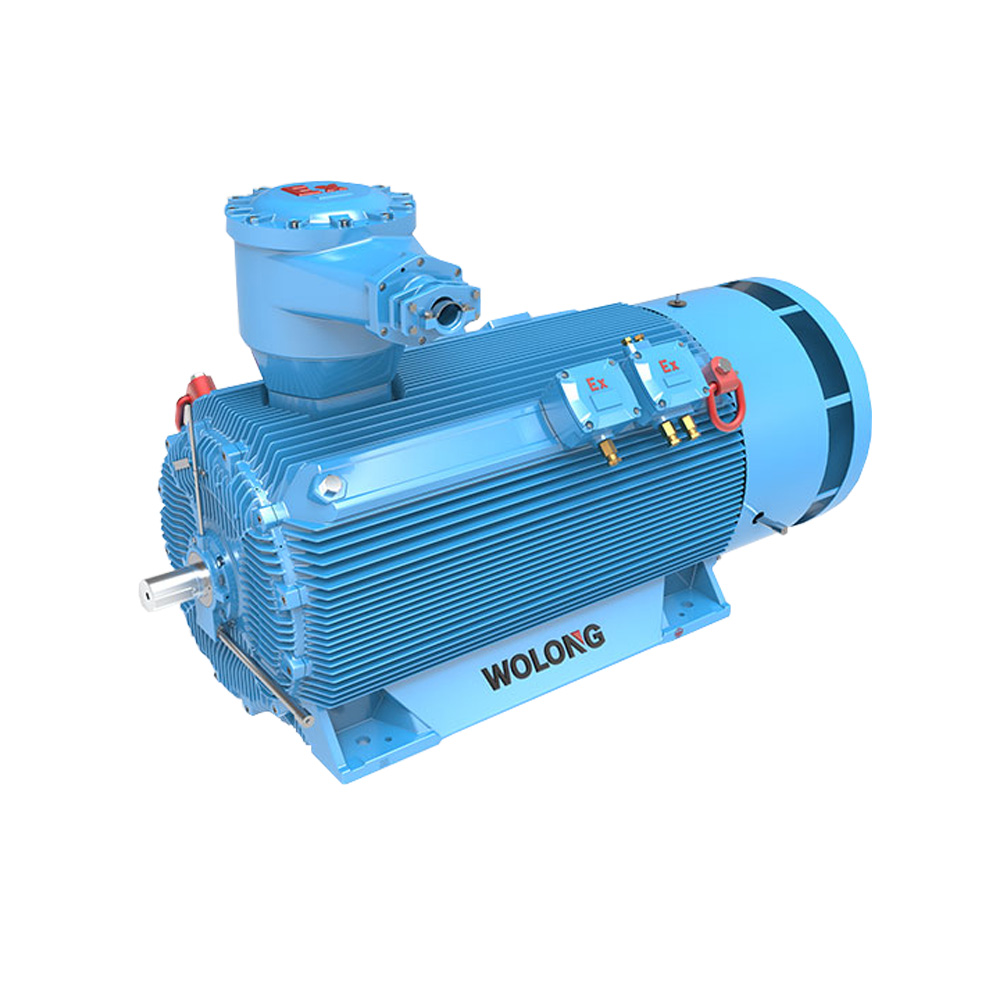

YAKK, YAKS series (6kV, 10kV) high-voltage increased safety three-phase asynchronous motors (frame size 355~630) are optimized series of products combined with our company's long-term and stable production experience in designing and manufacturing increased-safety high-voltage three-phase asynchronous motors. This series of motors has the characteristics of exquisite material selection, excellent manufacture, high efficiency, low noise, small vibration, safe and reliable operation, convenient use and maintenance, energy saving and environmental protection.
This series of motors has the characteristics of lower center height, higher power, lower noise, safe and reliable operation, and convenient use and maintenance. It is suitable for driving various fans, compressors, water pumps, crushers, cutting machinery, transportation machinery, general machinery and other mechanical equipment, and is used as the driving force in various working conditions such as mines, steel, machinery, petroleum, chemical industry, power stations, etc. use. Regardless of indoor or outdoor, plateau climate or hot and humid climate, this series of high-voltage three-phase asynchronous motors can always provide superior driving force, and have won the trust and praise of users.
